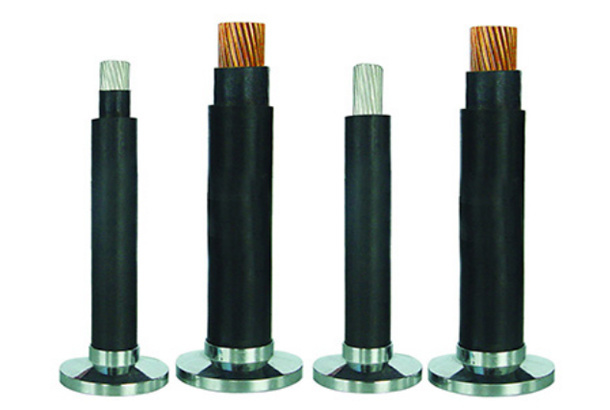

Overhead insulated cable

This product is suitable for overhead power lines with AC rated voltage U (Um) of 10 (12) KV



Overhead cable (full name overhead insulated cable) is an overhead wire equipped with an insulating layer and a protective sheath. It is a special cable manufactured by a production process similar to that of a cross-linked cable. It is a new power transmission between overhead wires and underground cables. Way [1]. Overhead cables are single-core, and can be divided into hard aluminum wire structure, hard drawn copper wire structure, aluminum alloy wire structure, steel core or aluminum alloy core support structure and self-supporting three-core pattern structure (wire The core can be hard aluminum or hard copper wire) and so on. It has the main characteristics of high reliability of power supply, good power supply safety, convenient installation and maintenance, and reasonable economy. Its main technical parameters include weather resistance, insulation level, internal and external semi-conductive shielding layer. Overhead cables are widely used in power transmission at home and abroad.

【Overhead insulated cable】



一、Use
This product is suitable for overhead power lines with AC rated voltage U (Um) of 10 (12) KV
二、Conditions of Use:

(1) The maximum long-term allowable working temperature of the cable conductor is 90℃.
(2) The laying temperature is not lower than -20℃.
(3) When short-circuiting (the longest duration does not exceed 5 seconds) the maximum temperature of the conductor should not be more than 250 ℃






1 / 1
Number of views:
1007

Overhead insulated cable

This product is suitable for overhead power lines with AC rated voltage U (Um) of 10 (12) KV
Retail price
0.0
Market price
0.0
Number of views:
1007
Product serial number
Quantity
-
+
1
产品描述


Overhead cable (full name overhead insulated cable) is an overhead wire equipped with an insulating layer and a protective sheath. It is a special cable manufactured by a production process similar to that of a cross-linked cable. It is a new power transmission between overhead wires and underground cables. Way [1]. Overhead cables are single-core, and can be divided into hard aluminum wire structure, hard drawn copper wire structure, aluminum alloy wire structure, steel core or aluminum alloy core support structure and self-supporting three-core pattern structure (wire The core can be hard aluminum or hard copper wire) and so on. It has the main characteristics of high reliability of power supply, good power supply safety, convenient installation and maintenance, and reasonable economy. Its main technical parameters include weather resistance, insulation level, internal and external semi-conductive shielding layer. Overhead cables are widely used in power transmission at home and abroad.

【Overhead insulated cable】



一、Use
This product is suitable for overhead power lines with AC rated voltage U (Um) of 10 (12) KV
二、Conditions of Use:

(1) The maximum long-term allowable working temperature of the cable conductor is 90℃.
(2) The laying temperature is not lower than -20℃.
(3) When short-circuiting (the longest duration does not exceed 5 seconds) the maximum temperature of the conductor should not be more than 250 ℃
